Description
1.Introduction：
vaccine vial filling and plug stoppering and aluminum sealing machine for the application of round glass vaccine vial bottle or similar ones.
2.Features：
auto accomplish product filling, plug unscrambling, plug placing. The machine is composed by a load turntable, conveyor, peristaltic pump &fill nozzles, plug sorter, Plug placer system. The bottle loading/unloading is done manually, through loading turntableØ500mm, or able to directly from aproduction line. It is designed and made accordance to GMP regulation.
3.Main Technical Parameters：
1)Kind of bottle:Various kind, e.g. round, flat, oval
2)Bottle size:Min. Ø20mm Max. Ø60mm
3)Speed:Model 120: 60~80bpm double station
4)Model 60: 40~50bpm single station
5)Filling volume:1ml~100ml application
6)Filling accuracy:±0.5%
7)Power:220V 50/60Hz 1.5kw
8)Compress air require:50L/min, 0.6MPA
9)Machine size(LxWxH):1500x1200x1500mm
vaccine vial filling and plug stoppering and aluminum sealing machine for the application of round glass vaccine vial bottle or similar ones.
2.Features：
auto accomplish product filling, plug unscrambling, plug placing. The machine is composed by a load turntable, conveyor, peristaltic pump &fill nozzles, plug sorter, Plug placer system. The bottle loading/unloading is done manually, through loading turntableØ500mm, or able to directly from aproduction line. It is designed and made accordance to GMP regulation.
3.Main Technical Parameters：
1)Kind of bottle:Various kind, e.g. round, flat, oval
2)Bottle size:Min. Ø20mm Max. Ø60mm
3)Speed:Model 120: 60~80bpm double station
4)Model 60: 40~50bpm single station
5)Filling volume:1ml~100ml application
6)Filling accuracy:±0.5%
7)Power:220V 50/60Hz 1.5kw
8)Compress air require:50L/min, 0.6MPA
9)Machine size(LxWxH):1500x1200x1500mm
10)Machine weight:650kgs

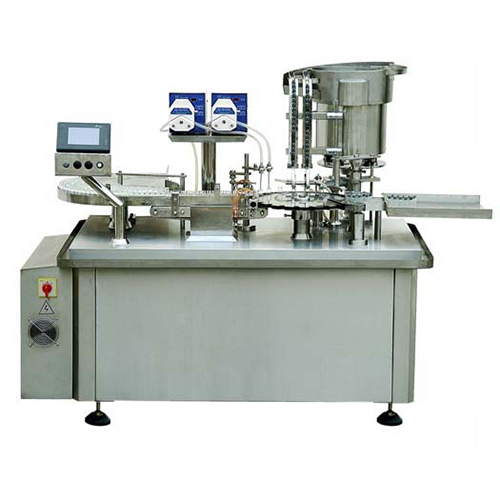

Aseptic vaccine vial filling machine picture for reference:
More information for aseptic vaccine vial filling machine,please browse Our youtube channel:https://www.youtube.com/watchv=tzTc1PNZ4yw&list=PLAijjmGaBBAzksS4UplQghzydjrfPzOAl&index=6
