Description
Hand sanitizer PET blowing machine
1.Introduction
hand sanitizer PET blowing machine stretches preforms by using a servo motor-controlled,The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,machine has a fast stretching speed and precise position.
2.Features:
1)Servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
2)Suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
3)Increase energy using efficiency,increase productivity per unit of time.
4)Manual and automatic methods of operation, human-machine interface control, simple operation.
1.Introduction
hand sanitizer PET blowing machine stretches preforms by using a servo motor-controlled,The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,machine has a fast stretching speed and precise position.
2.Features:
1)Servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
2)Suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
3)Increase energy using efficiency,increase productivity per unit of time.
4)Manual and automatic methods of operation, human-machine interface control, simple operation.
3.Main Technical Parameter:
Theoretical output:1600-2200pcs/h
1)Finished bottle:Max. bottle volume 2L
2)Max. neck diameter:40mm
3)Max. bottle diameter:120mm
4)Max. bottle height:380mm
5)Mold specifications:2 Cavity
6)Mold thickness:180mm-240mm
7)Open stroke:130mm
8)Power voltage:380v/3Phase/50HZ
9)Installation power:20kw
10)Air source:High pressure air compressor 1.2m³/min 30Kg
11)Low pressure air compressor:1.6m³/min 10Kg
12)Cooling water:Recommend water chiller 5HP
13)Blowing machine size(LxWxH):1980*1650*2020mm
14)weight:2000kg
15)Preform loader size(LxWxH):1950*1350*2650 mm
16)Weight:550kg

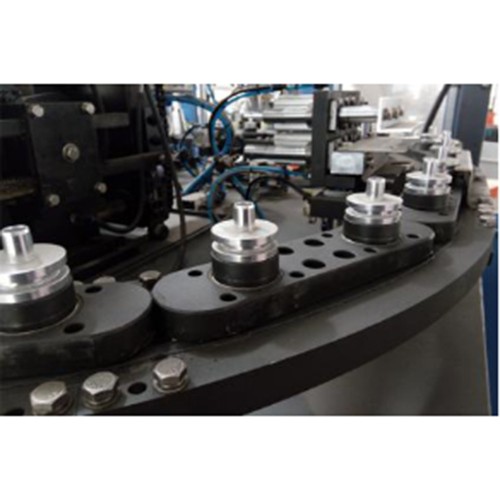

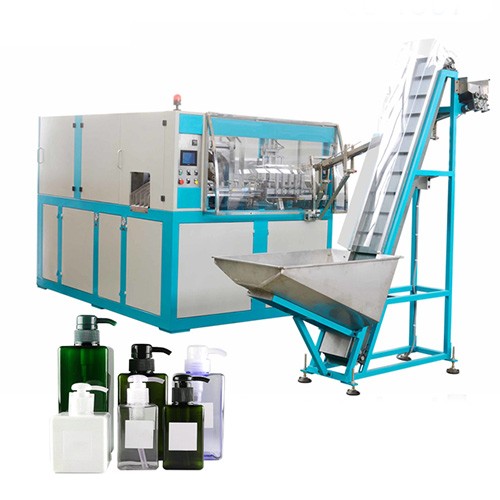

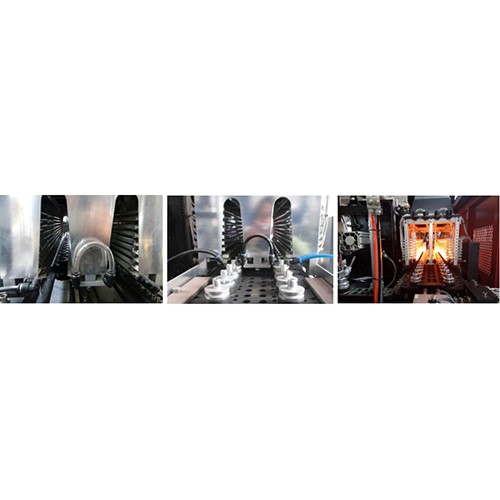

hand sanitizer PET blowing machine for picture reference: :
More information for hand sanitizer PET blowing machine ,please browse of youtube channel:https://www.youtube.com/watch?v=waEeoelNFNY
