Description
Ultrasonic vials bottle washing machine
1. Introduction

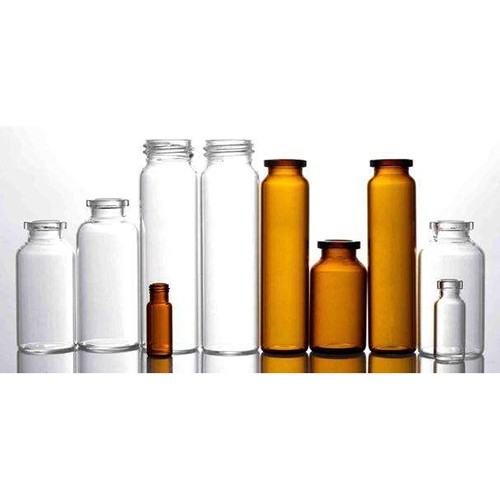

Ultrasonic vials bottle washing machine are appliable to wash small ampoule,penicilin bottles,infusion bottles etc., bottle outside diameter between 10~30mm.
2. Main Features:
1) Washing quality up to the G.M.P. standard
2)Simple and practical operation is due to the model of bottle feeding is in bulk.
3)Adopt clamp to get bottle, applicable for various specification botles
4) Adopted Tracking&Inserting type water-wash and gas-wash, which can ensure bottles washing quality and low consumption of water&air.
5)Adopt PLC to control and HMI for display and operation
3.Main Technical Parameters
1)Power Supply:380V,50HZ
2)Water Consumption:0.38cbm/h
3)Compressed Air Consumption:3 cbm/h
4)Total Power:10KW
5)Ultrasonic Power:600V, 27HZ
6)Clean Range:10~50ml Bottle
7)Leakage Rate:0.5%
8)Capacity:100~400 bottle/min
9)Compressed Air Pressure:0.35~0.45MPa
10)Water Pressure:0.3~0.4MPa
11)Dimensions: 2800x 2400x1500mm
1. Introduction
Ultrasonic vials bottle washing machine are appliable to wash small ampoule,penicilin bottles,infusion bottles etc., bottle outside diameter between 10~30mm.
2. Main Features:
1) Washing quality up to the G.M.P. standard
2)Simple and practical operation is due to the model of bottle feeding is in bulk.
3)Adopt clamp to get bottle, applicable for various specification botles
4) Adopted Tracking&Inserting type water-wash and gas-wash, which can ensure bottles washing quality and low consumption of water&air.
5)Adopt PLC to control and HMI for display and operation
3.Main Technical Parameters
1)Power Supply:380V,50HZ
2)Water Consumption:0.38cbm/h
3)Compressed Air Consumption:3 cbm/h
4)Total Power:10KW
5)Ultrasonic Power:600V, 27HZ
6)Clean Range:10~50ml Bottle
7)Leakage Rate:0.5%
8)Capacity:100~400 bottle/min
9)Compressed Air Pressure:0.35~0.45MPa
10)Water Pressure:0.3~0.4MPa
11)Dimensions: 2800x 2400x1500mm

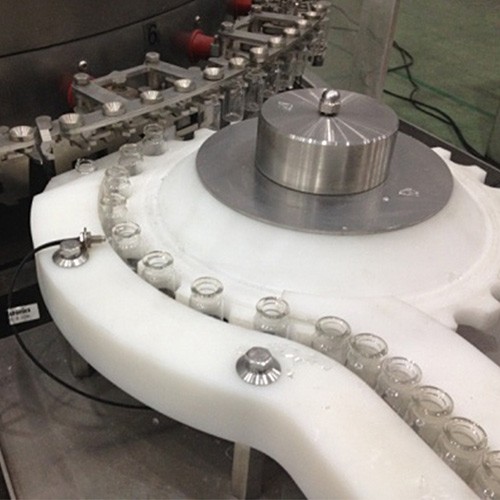

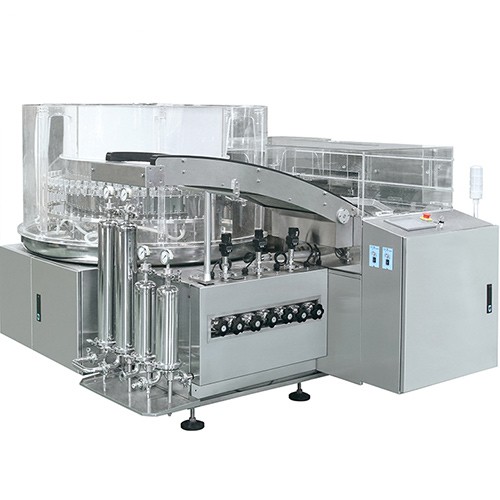

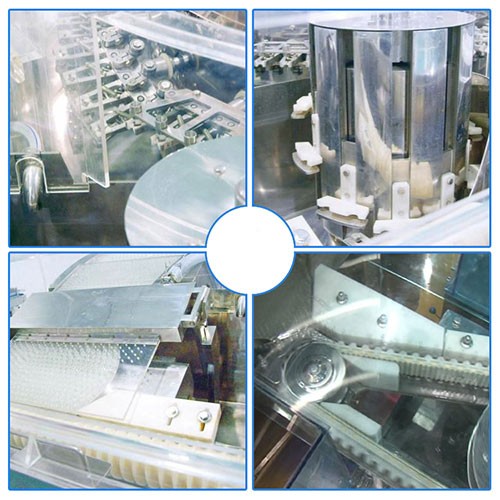

Ultrasonic vials bottle washing Machine picture for reference
More information for Ultrasonic vials bottle washing Machine ,Please browse my youtube channel:https://www.youtube.com/watch?v=4vuxGQgWHh8&list=PLAijjmGaBBAzksS4UplQghzydjrfPzOAl&index=37
