Description
Automatic counting machine
1.Introduction：
Wide applicability, used for candy,chocolate bean. capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.
2.Features：
1)Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling.(Optional)
2)High-degree of automatic, no bottle will not count and fill. Automatically remove bottles of filling abnormalities and a certain size broken tablets. Self-diagnose errors and stop working to make alarm at errors.
3.Technical parameter:
1)Counting Speed:000-3500 pieces/minute
2)Hopper capacity:Approx. 27 liters
3)Bottle height range:40mm-240mm
4)Bottle neck diameter:Φ25- 40 mm ( customized based on the requirements )
5)Bottle body diameter:Φ45 mm–100 mm ( customized based on the requirements )
6)Power source & consumption:1.5KW, 220v, single phase, 50-60HZ（Optional）
7)Compressed air pressure:87 Psi (6 Kgs/ cm2)
8)Dimensions:1800mm×1400mm×1665 mm ( Length × Width × Height )
9)Weight 700kg
1.Introduction：
Wide applicability, used for candy,chocolate bean. capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.
2.Features：
1)Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling.(Optional)
2)High-degree of automatic, no bottle will not count and fill. Automatically remove bottles of filling abnormalities and a certain size broken tablets. Self-diagnose errors and stop working to make alarm at errors.
3.Technical parameter:
1)Counting Speed:000-3500 pieces/minute
2)Hopper capacity:Approx. 27 liters
3)Bottle height range:40mm-240mm
4)Bottle neck diameter:Φ25- 40 mm ( customized based on the requirements )
5)Bottle body diameter:Φ45 mm–100 mm ( customized based on the requirements )
6)Power source & consumption:1.5KW, 220v, single phase, 50-60HZ（Optional）
7)Compressed air pressure:87 Psi (6 Kgs/ cm2)
8)Dimensions:1800mm×1400mm×1665 mm ( Length × Width × Height )
9)Weight 700kg
10)Working direction:Left → Right (or Right → Left)

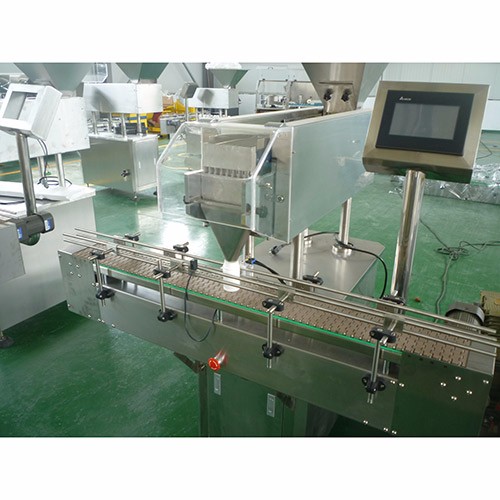

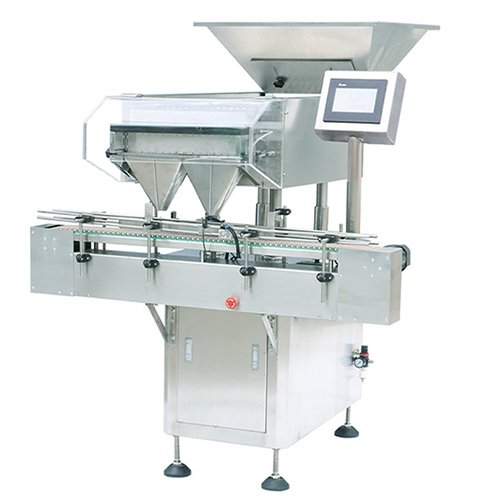

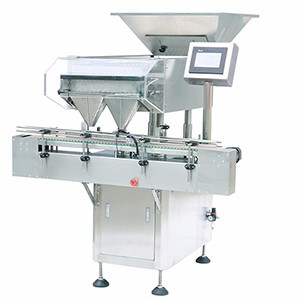

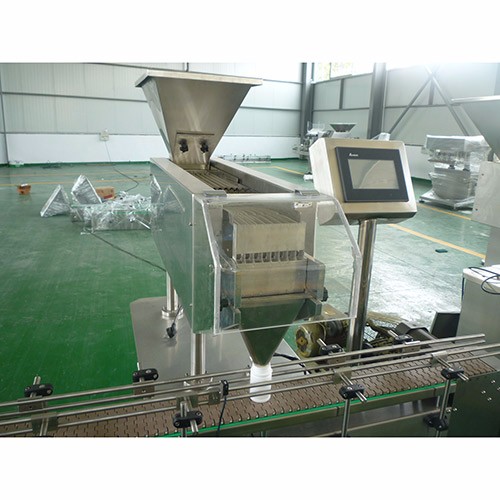

Automatic capsule counting machine picture for reference:
More information for capsule counting machine,please browse YouTube Channel:https://www.youtube.com/watch?v=89p9l_5quQM&list=PLAijjmGaBBAy-J8duo-_swjupvwpHmhIH&index=3
